Triumph Bonneville T100/T120 Tail Tidy.
- James
- Jul 6, 2018
- 2 min read
Updated: 3 days ago
Don't believe a word of it! Size does Matter!! How can you live with such a Monstrosity!!! A fender can look good.
I have made a bolt on, plug and play kit exclusively, for those that want a sporty looking Bonnie.
Replacing the generous portion of OEM lights brings balance.
Mounted and secured by the same 3 screws that secure stock light. The light housing deceivingly floats above fender so no metal-paint contact is made.
Click here to see kits......https://www.maundspeed.com/bonnevillet100t120streettwin
Click on any picture to enlarge.

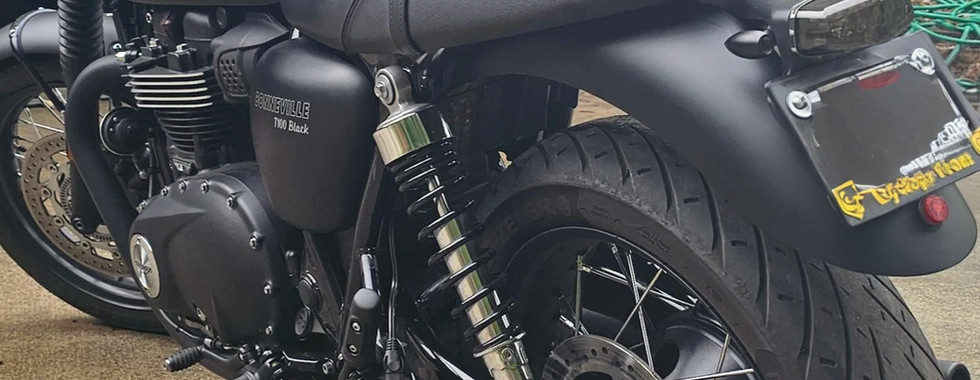

Please note the 6th and 7th picture have bobbed stock fenders. The Triumph Bonneville T100/T120 tail tidy kit is available with choice of 4 different tail lamps. With or without turn signals or with mounts for O.E.M signals.
Custom aluminum housing is offered polished or brushed satin, matte black or black gloss with all stainless hardware. Handcrafted aluminum light housings are cast, machined and finished in Los Angeles. Considering they cost less than mass produced O.E.M tail light assembly made overseas, they are a great deal.
This is not a generic part, that you maybe can make work after a day of wrestling that ends with a compromised result.
The design and craftsmanship makes this a 100% plug and play factory fitting kit.
Connecting specific lamps is explained below.
Q/C Harness Connects to
BLACK .............................GROUND -
BROWN............................TAIL LIGHT +
ORANGE...........................BRAKE +
BLUE..................................R/H TURN +
RED....................................L/H TURN +
BLACK DUAL CONNECTOR .........SIGNAL GROUND -
Turn Signals
BLACK.........POSITIVE +
BLACK/WHITE .......NEGATIVE -
LED Turn Signals 8mm
BLACK....................GROUND -
YELLOW.................POSITIVE +
Tail lamp connections
Lucas 525
BLACK /WHITE..............GROUND -
BLACK............................TAIL LIGHT +
RED.................................BRAKE +
LED Smoke Miller Stop and LED Red Lens
BLACK..................GROUND -
BLUE.....................TAIL LIGHT +
RED.......................BRAKE +
Hooking up to stock harness on Thruxton 1200, Bonneville or Street Twin/Scrambler & Cup this is what you need know.
BRAKE LIGHT + ............GREEN/PURPLE
TAIL LIGHT +.................YELLOW
R/H TURN +...................GREEN/WHITE
L/H TURN +...................GREEN/RED
GROUNDS-.....................BLACK
