Triumph Thruxton 1200 R /RS Tail Lamp kit.
Updated: Dec 27, 2025
Don't believe a word of it! Size does Matter!! How can you live with such a Monstrosity!!! To make a Thruxton 1200 R/RS into a real cafe racer a few tweeks here and there are mandatory.
I have a few options... If you want to lose the fender, I have eliminator kits.
For those that didn't buy a modern classic, by mistake.) I have made a "real"
tail light kit any traditional cafe racer enthusiast would adore.
The Triumph Thruxton 1200 R/RS tail lamp kit mounts in the same position and is secured by the same 3 screws that secure stock light. The light housing deceivingly floats above fender so no metal-paint contact is made. No Special tools needed. 8mm socket and 17mm wrench will do the job. Add quick connect harness and plug in.
Kit is available with choice of 4 different tail lamps. With or without turn signals. Custom aluminum housing finished in Polished, brushed satin or black, all with stainless hardware.
Whether you prefer a fender eliminator or fender mount tail lamp housing, it's a bolt on fitting part with plug & play hook up. These hand made custom kits are a great deal considering the design and work involved in their being.
Interested?? Take a gander https://www.maundspeed.com/thruxtonr-1200
Coca Cola Triumph Thruxton 1200R Cafe Racer
Triumph Thruxton 1200/R Tail Light Kit
Thruxton 1200 R cafe racer custom tail light

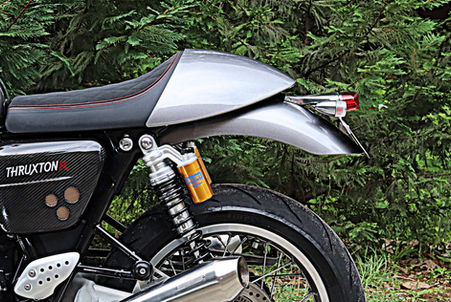

Thruxton cafe racer tail lamp kit
Thruxton R Vs Maund Speed tail lamp size comparison
Brushed satin Lucas lamp housing on Triumph Thruxton R
Triumph Thruxton tail light size comparison
Thruxton Tail Light with stock signal mounts
Triumph Thruxton RS tail tidy with Triumph turn signal mounts
Triumph Thruxton RS Lucas tail light Kit
Triumph Thruxton 1200 Maund Speed Equipment tail tidy
Thruxton 1200 Maundspeed tail tidy kit
Triumph Thruxton 1200 Lucas tail tidy
Triumph Thruxton R Cafe racer tail light
Maund Speed Equipment Thruxton motorcycle tail lights

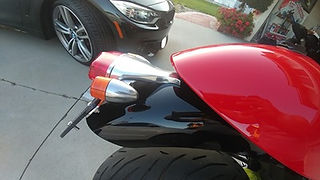

Triumph Thruxton Lucas tail tidy

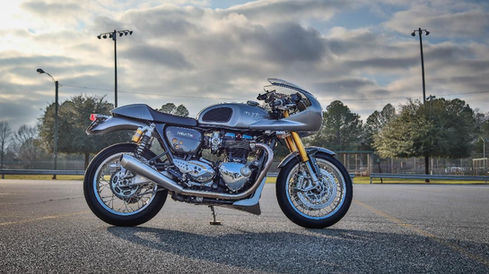

Thruxton R motorcycle with Lucas tail light
Triumph Thruxton RS Maundspeed Tail light
Connecting specific lamps is explained below.
Q/C Harness Connects to
BLACK .............................GROUND -
BROWN............................TAIL LIGHT+
ORANGE...........................BRAKE +
BLUE.................................R/H TURN +
RED...................................L/H TURN +
BLACK DUAL CONNECTOR .........SIGNAL GROUND -
Turn Signals
BLACK.........POSITIVE +
BLACK/WHITE .......NEGATIVE -
LED Turn Signals 8mm
BLACK....................GROUND -
YELLOW.................POSITIVE +
Tail Lamp Connections
Lucas 525
BLACK / WHITE.................GROUND -
BLACK.................................TAIL LIGHT +
RED......................................BRAKE +
LED Smoke Miller Stop and Red Lens
BLACK..................GROUND -
BLUE.....................TAIL LIGHT +
RED.......................BRAKE +
Hooking up to stock harness on Thruxton 1200, Bonneville or Street Twin/Scrambler this is what you need know.
BRAKE LIGHT + ............GREEN/PURPLE
TAIL LIGHT +.................YELLOW
R/H TURN +...................GREEN/WHITE
L/H TURN +...................GREEN/RED
GROUNDS-.....................BLACK
