Triumph Bonneville T100/T120 Tail Lamp kit.

Updated: May 16, 2023

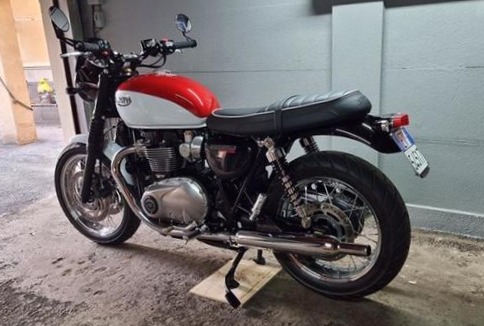

Don't believe a word of it!  Size does Matter!! How can you live with such a Monstrosity!!! A fender can look good. So I have made a bolt on, plug and play kit exclusively, for those that want a sporty looking Bonnie. Replacing the generous portion of OEM lights brings balance.

Mounted and secured by the same 3 screws that secure stock light. Tail light housing deceivingly floats above fender so no metal-paint contact is made.

Click here to see kits......https://www.maundspeed.com/bonnevillet100t120streettwin



Kit is available with choice of 4 different tail lamps. With or without turn signals. Custom aluminum housing finished in Polished or brushed satin, matte black or black gloss with all stainless hardware.  These hand made custom kits are a great deal considering the design and work involved in their being.


Connecting specific lamps is explained below.

 Q/C Harness                 Connects to

BLACK .............................GROUND -

BROWN............................TAIL LIGHT+

ORANGE...........................BRAKE +

BLUE..................................R/H TURN +

RED....................................L/H TURN +

BLACK DUAL CONNECTOR .........SIGNAL GROUND -

Turn Signals

BLACK.........POSITIVE +

BLACK/WHITE .......NEGATIVE -


LED Turn Signals 8mm

BLACK....................GROUND -

YELLOW.................POSITIVE +


Tail lamp connections

Lucas 525

BLACK /WHITE..............GROUND -

BLACK............................TAIL LIGHT +

RED.................................BRAKE +


LED Smoke Miller Stop and LED Red Lens

BLACK..................GROUND -

BLUE.....................TAIL LIGHT +

RED.......................BRAKE +

Hooking up to stock harness on Thruxton 1200, Bonneville or Street Twin/Scrambler & Cup this is what you need know.

BRAKE LIGHT + ............GREEN/PURPLE

TAIL LIGHT +.................YELLOW

R/H TURN +...................GREEN/WHITE

L/H TURN +...................GREEN/RED

GROUNDS-.....................BLACK
