Triumph Street Scrambler /Street Twin Fender Eliminator

Updated: Aug 20, 2023

Scrambler/ Twin fender eliminators are now available with many different options.........

An array of LED tail Lights, turn Signal lens colors, finishes and mounting options.

Cast aluminum bracket and all stainless components. Very Nice Indeed!

Can supply satin brushed brackets on your request.

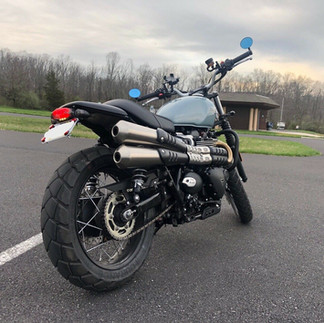

Scrambler/ Street Twin FEKs also fit Street Cup!

Plug/play front turn signals with Oem mountings are available to include with kit.

Scrambler FEKs are just a click away

https://www.maundspeed.com/street-scrambler-street-cup


ASSEMBLY


1/ Assemble tail lamp and signals to FEK bracket. Lightly tighten the signals to mounts so the position can be set and fully tightened when fitted to bike.

2/ Disconnect battery.

3/ Disconnect connector plug for fender harness.

4/ Remove 4 fender bolts with T30 driver.

5/ Eliminate fender.

6/ Remove rearward seat latch screw with T30 driver. Replace with 50mm screw supplied. Use 4mm Allen wrench.

For Street Scrambler with rack. Use the 35mm screw supplied and install in the rearward threaded hole. The seat latch is in a more central position than models with full seat.

7/ Remove the 2 forward fender screws and ferrules. Fit the 2 larger washers supplied under ferrule head and replace in back in position.

8/ Position stainless mudguard on the forward 2 ferrules, Lightly tighten using 6mm nuts and washers supplied. Make sure the ferrules are actually located in the holes.

9/ Position the light bracket single rearward hole on the rearward screw previously installed. Lightly tighten the M6 nut and washer (supplied).

Align the rear 2 fender mounting holes with the mud pan and light bracket. Insert the 2x oem fender bolts and secure with stainless washers / nyloc nuts supplied. As the screws and ferrules are mounted in rubber grommets a screwdriver will help align the holes.

10/ Fully tighten the 4 fender mounting screws. Then snug up the rear bolt but do not over tighten.

11/ The turn signals can then be tightened in the desired position.

12/ Connect wires


Connecting Specific lamps is explained below. It is not color to color matching and differs between different lamp options.


Q/C Harness           Connects to

BLACK .......................GROUND -

BROWN......................TAIL LIGHT+

ORANGE.....................BRAKE +

BLUE...........................R/H TURN +

RED.............................L/H TURN +

BLACK DUAL CONNECTOR .......SIGNAL GROUND -


Turn Signals

BLACK.........POSITIVE +

BLACK/WHITE .......NEGATIVE -


LED Turn Signals 8mm

BLACK....................GROUND -

YELLOW.................POSITIVE +



Tail Lamp Connections


Lucas 525

BLACK / WHITE.................GROUND -

BLACK................................TAIL LIGHT +

RED.....................................BRAKE +


LED Smoke Miller Stop and LED Red Lens

BLACK..................GROUND -

BLUE.....................TAIL LIGHT +

RED.......................BRAKE +

Hooking up to stock harness on Thruxton 1200, Bonneville or Street Twin/Cup or Scrambler this is what you need know.

BRAKE LIGHT + ............GREEN/PURPLE

TAIL LIGHT +.................YELLOW

R/H TURN +...................GREEN/WHITE

L/H TURN +...................GREEN/RED

GROUNDS- .....................BLACK
