Triumph Thruxton 1200 R / RS Fender Eliminator

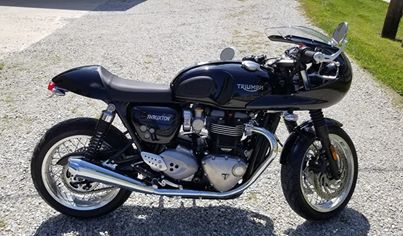

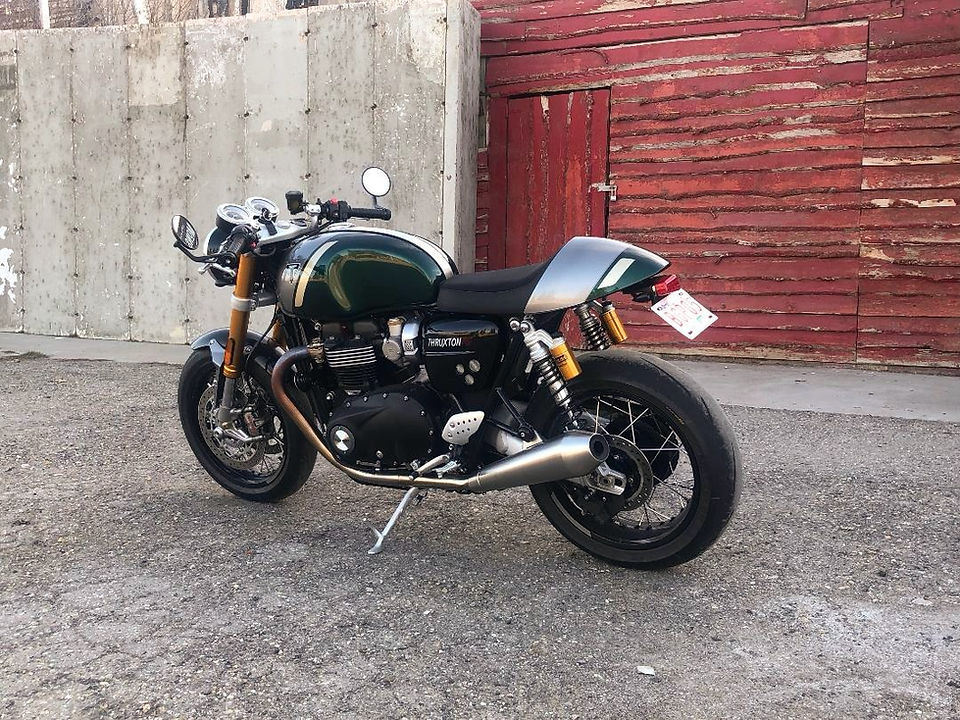

Fender Eliminator for liquid cooled Thruxton 1200 R / RS.  Designed in British cafe racer style. Crafted in aircraft grade aluminum casting. Finished in satin or black. All stainless hardware. Fits like a glove and a true upgrade.

Why would you consider a kit made from a bent up piece of 10 cent plate on your investment?

Bolt on ready with quick connect harness. Accepts Triumph O.E.M signals or standard 10mm.

                                           British made in the U.S.A

ASSEMBLY

1/ Disconnect connector plug for fender harness.

2/ Remove 6 fender bolts, remembering the forward 2 are shorter, then remove fender.

3/ (Not applicable to RS models) Remove seat latch by removing the screw. Once latch is free, the cable should be disconnected from mechanism.

4/ Replace forward 2 rubber grommets fitted on fender, to forward 2 holes in F.E.K mud pan.

5/ Keep all other rubber grommets and steel ferules in place. First, fit the forward 2 bolts retaining light bracket, using oem bolts. Stainless washers and nyloc nuts supplied.

6/ With all 4 holes in bracket aligned, tighten forward 2 bolts. Please make sure the steel ferules are fully located into 4 holes in aluminum lamp bracket. Be aware that grommet holes are slightly elongated for alignment. Before fitting, make grommets free in holes for easy alignment.

7/ For R model only. Feed seat latch cable through transfer hole in base of pan. Reattach to latch and secure latch to frame.

8/ Align mud pan and secure with remaining 4 bolts, washers and nuts. Remembering, the shorter 2 bolts fit in forward position.

 9/ Connect wires as below

  Connecting specific lamps is explained below.

 Q/C Harness                 Connects to

BLACK .............................GROUND -

BROWN............................TAIL LIGHT+

ORANGE...........................BRAKE +

BLUE.................................R/H TURN +

RED...................................L/H TURN +

BLACK DUAL CONNECTOR .........SIGNAL GROUND -

Turn Signals Filament

BLACK.........POSITIVE +

BLACK/WHITE .......NEGATIVE -

Lucas 525 filament bulb

BLACK / WHITE.................GROUND -

BLACK................................TAIL LIGHT +

RED.....................................BRAKE +

LED Tail Lamp Connections

LED Lucas 525

YELLOW.............GROUND -

BLACK................TAIL LIGHT +

RED......................BRAKE +

LED Smoke Miller Stop and LED Red Lens

BLACK..................GROUND - BLUE.....................TAIL LIGHT + RED.......................BRAKE +

LED Turn Signals

BLACK....................GROUND -

YELLOW.................POSITIVE +

If hooking up to stock harness on Thruxton 1200, Bonneville or Street Twin/Scrambler this is what you need know. BRAKE LIGHT + ............GREEN/PURPLE TAIL LIGHT +.................YELLOW R/H TURN +...................GREEN/WHITE L/H TURN +...................GREEN/RED GROUNDS-.....................BLACK

RS sequence of FEk installation

10mm Front Turn Signal Installation

All front turn signals are supplied with plug play connectors. It is common practice to install 10mm front signals. Mounting hole is easily enlarged with a drill.
