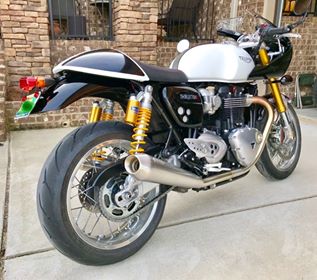

Triumph Thruxton 1200/R /RS Tail Lamp kit.

Updated: May 16, 2023

Don't believe a word of it!  Size does Matter!! How can you live with such a Monstrosity!!! To make a Thruxton 1200 R/RS into a real cafe racer a few tweeks here and there are mandatory.

I have a few options... If you want to loose the fender, I have eliminator kits.

For those that didn't buy a modern classic, by mistake.) I have made a "real"

tail light kit any traditional cafe racer enthusiast would adore.

Mounted and secured by the same 3 screws that secure stock light. Tail light housing deceivingly floats above fender so no metal-paint contact is made. No Special tools needed. 8mm socket and 17mm wrench will do the job. Add quick connect harness and plug in.

Kit is available with choice of 4 different tail lamps. With or without turn signals. Custom aluminum housing finished in Polished, brushed satin or black, all with stainless hardware.

Whether you prefer a fender eliminator or fender mount tail lamp housing, it's a bolt on fitting part with plug & play hook up.  These hand made custom kits are a great deal considering the design and work involved in their being.

Interested?? Take a gander https://www.maundspeed.com/thruxtonr-1200


Connecting specific lamps is explained below.

 Q/C Harness                 Connects to

BLACK .............................GROUND -

BROWN............................TAIL LIGHT+

ORANGE...........................BRAKE +

BLUE.................................R/H TURN +

RED...................................L/H TURN +

BLACK DUAL CONNECTOR .........SIGNAL GROUND -


Turn Signals

BLACK.........POSITIVE +

BLACK/WHITE .......NEGATIVE -


LED Turn Signals 8mm

BLACK....................GROUND -

YELLOW.................POSITIVE +


Tail Lamp Connections


Lucas 525

BLACK / WHITE.................GROUND -

BLACK.................................TAIL LIGHT +

RED......................................BRAKE +


LED Smoke Miller Stop and Red Lens

BLACK..................GROUND -

BLUE.....................TAIL LIGHT +

RED.......................BRAKE +


Hooking up to stock harness on Thruxton 1200, Bonneville or Street Twin/Scrambler this is what you need know.

BRAKE LIGHT + ............GREEN/PURPLE

TAIL LIGHT +.................YELLOW

R/H TURN +...................GREEN/WHITE

L/H TURN +...................GREEN/RED

GROUNDS-.....................BLACK
